You are here: Home > Covington Planter Parts > Planter Parts - Covington > Main Hopper Bottom (TP500A)

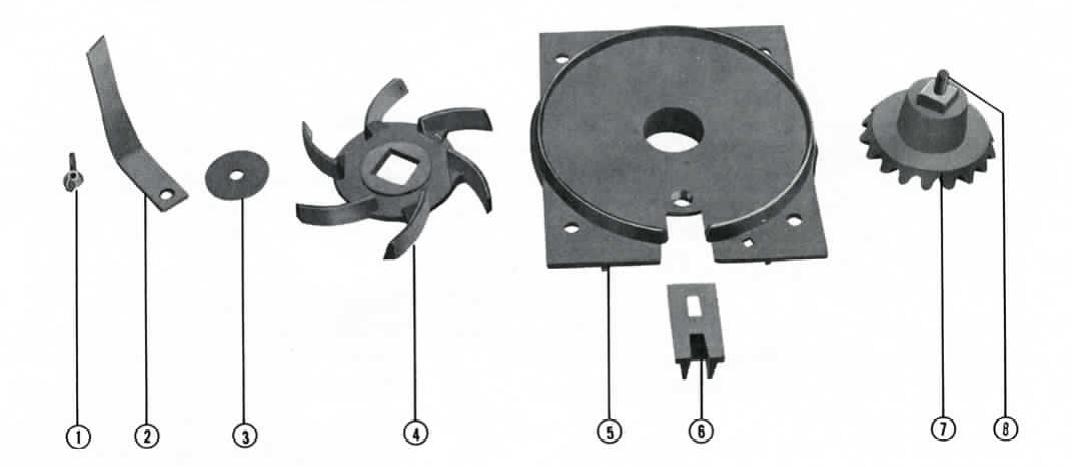

1.  WN4        NUT, 3/8" Wing
2.  TP37        AGITATOR, Seed
3.  TP63        WASHER, 13/32" x 2" Flat
4.  C853        STIRRER, Cotton Seed
5.  TP500      BOTTOM, Main Hopper
6.  C802        CONVEYOR, Cotton Seed with
     BS-4        BOLT, 5/16" x 1" Stove (not Shown) and
     HN3         NUT, 5/16" Hex (not Shown)
7.  TP501      GEAR, 18 Tooth Plate
8.  BM-2       BOLT, 3/8" x 1-1/4" Hex Head
Sort By:
1
18-Tooth Plate Gear 18-Tooth Plate Gear

18-Tooth Plate Gear

Our Price: $23.62
Main Hooper Bottom, Complete with C853, C802, TP501 & Seed Agitator Main Hooper Bottom, Complete with C853, C802, TP501 & Seed Agitator

Main Hooper Bottom, Complete with C853, C802, TP501 & Seed Agitator

Our Price: $167.27
